| Package Installation: |
Shovel, rain cover,
Z lock, silicon, cement n brush, iron
pipes, self drilling screws, power line plastic cover, disconnect box paint
. Rain Cover at Royce Co (Raleigh) 4821 Hargrove Rd. Raleigh, NC 27616
(Suite# 121). Rain Cover
measurement , sample ,
3208
Spottswood St, Raleigh, NC 27615 cfarnham@americancentralsupply.com (919)
872-1066 |
| |
|
| Condenser Installation: |
Shovel, torch, lancets, copper connectors,
Nitrogen, thread sealor |
| Air
Handler |
Metal
panel, Z lock, silicon, cement n brush, iron
pipes, self drilling screws; top discharge (condenser fan) is unrestricted >
5', to the wall> 12" and access panel to wall (shrubbery) > 3', drier filter
= [3....4"] from valve. vaccum <350 Microns |
|
|
Condenser <---> Air handler <150' and the height level <50'; |
|
Water Heater |
Taplon,
thread sealor.Direct vent Rheem at Home Depot is cheapest (50gal) height
=59.5". Square vent (CO gas) installed first with 2 screws, then cover vent
installed whole thing. Installed left segments of CO gas vent and outside
cover last. |
|
|
| |
|
|
3 Way Switch |
Basically,
power source (N n L). (a) N ->enter light bulb(s) [not connect to any
switch]. (b) L -> Common screw (black) at one switch and one line coming
out from light bulb-> another Common screw at other switch. (c) 2 pair
wires to connect between 2 switches synchronized |
| Condenser
fan motor |
two
wire to Capacitor, other two wire to Contactor, one left wires nowhere |
| |
|
|
Zone Control |

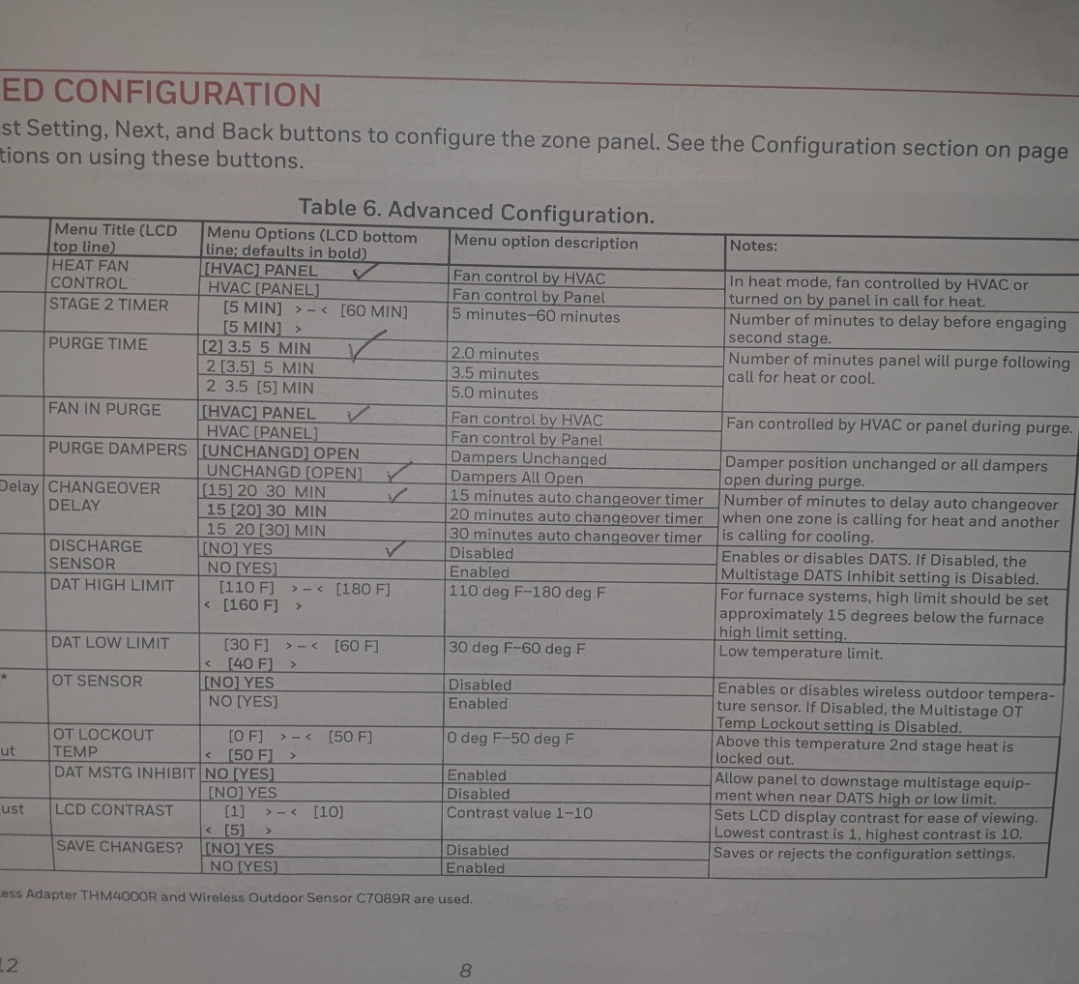

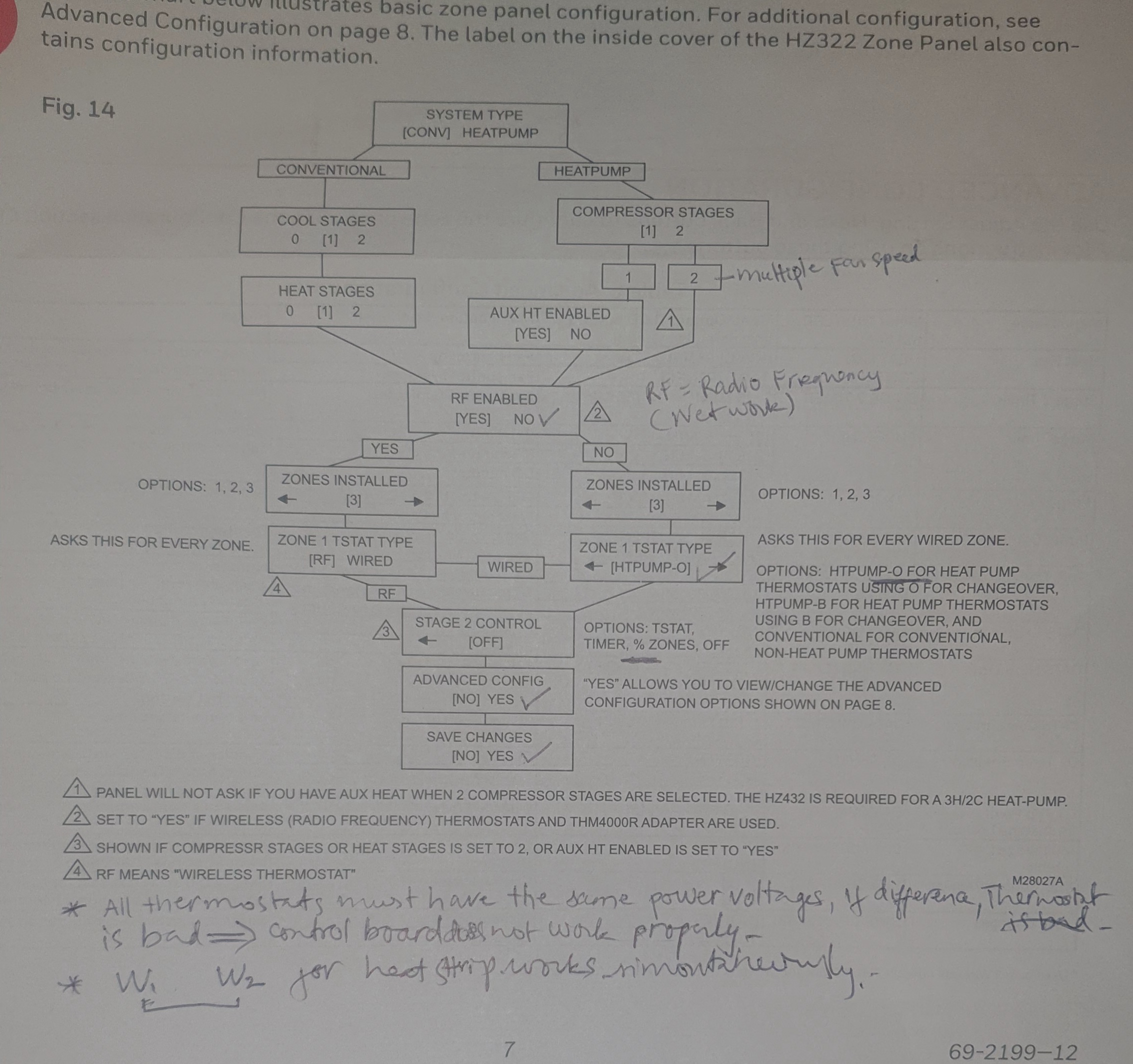

HoneywellHZ322: Settings1
Settings2 |
